COWSHELL
COWSHELL
WWSHELL
PREDICT BREEDING CATTLE RUTTING
AND NOTIFY THE OPTIMAL TIMING OF
ARTIFICIAL INSEMINATION.
OUR PROCESS
Why is cowshell
needed for breeding cattle management?
WWSHELL
We detect the rut of breeding cattle and inform
you of the right time for artificial insemination.
WWSHELL
A device that detects the rut of breeding
cattle and informs the user of the right
time for artificial insemination
- Wearing on the neck of a breeding cow(in the form of a necklace)
- Using motion sensors, etc., real-time data from breeding cattle's rut is transmitted to the server and behavior analysis is performed to notify the user of the right time for artificial insemination
Motion sensor
worn around
the neck of
breeding cattle
Real-time
transfer of data
that appears in
rut to the server
Analyze biometric
data to notify
users of the right
time for artificial
insemination
- Sensor Module / Necklace (band) / Necklace
- size: 138 mm × 77 mm × 21 mm
- Weight: 570 g
Composition
of sensor
module
Three sensors make accurate measurements,
High-performance antennas cover a wide range.
Composition of sensor module
• RF Module • Temperature sensor
• 3-axis MEMS • Battery AAA X 4ea
• Pressure sensor • PC Material
- Data transmission cycle: 10 minutes
- Data transfer distance: 100M

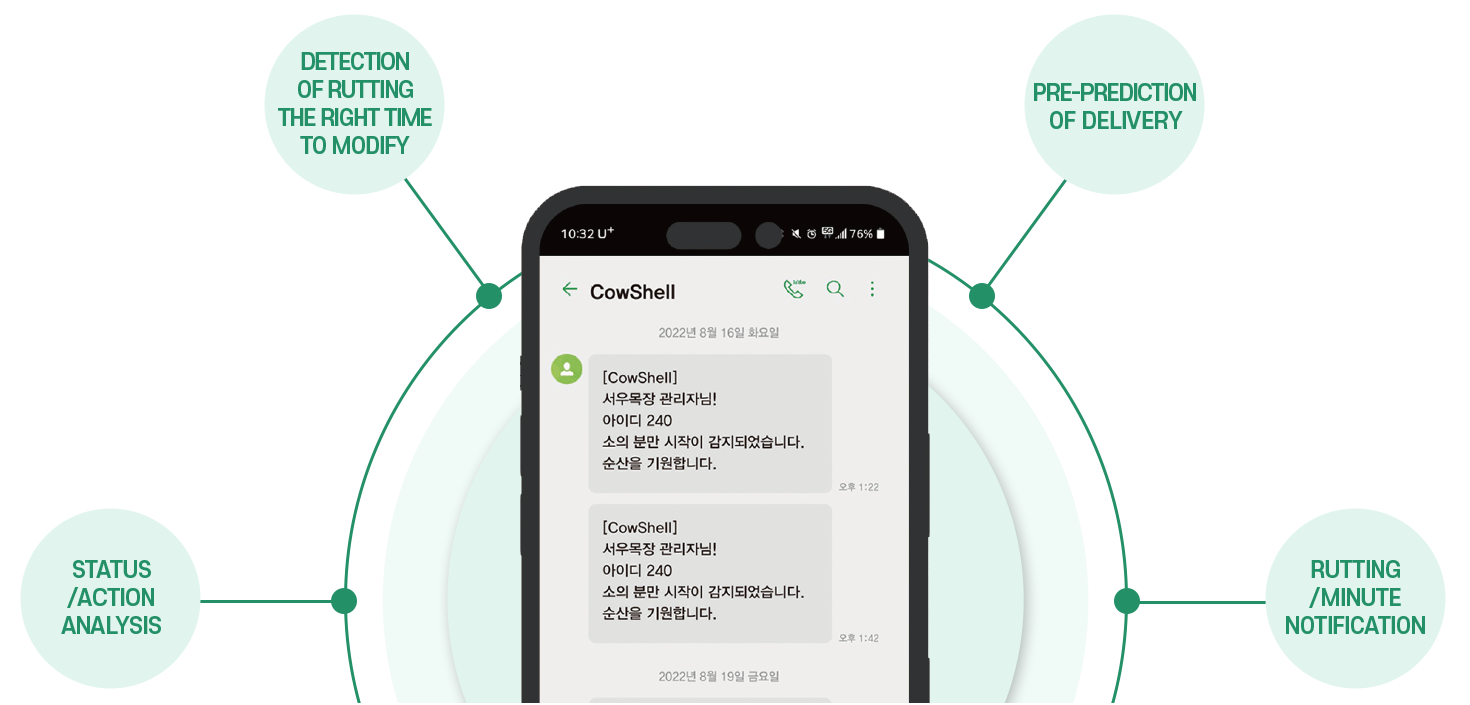

Event
notification
Analyze real-time data
to let users know when it is best.
Sensor
Integrated
Monitoring
System
Monitor and analyze biological
and location-based data of breeding cattle.
• Biological Data Analysis of Breeding Rainwater
• Location-based data monitoring
• Manage individual rutting and delivery data
• Reliable cloud-based services
• Event notification function
