COWSHELL
COWSHELL
OOSHELL
prediction of breeding
cattle, and announcement
of when to begin.
OUR PROCESS
Why is cowshell
needed for breeding cattle management?
OOSHELL
We predict the delivery of breeding
cattle and inform you of the start of delivery.
OOSHELL
CALVING DETECTION SENSOR
To detect the beginning
of a cow's delivery and inform the user
- It was inserted into the cow's uterus about two weeks before the expected delivery date
- Discharged with amniotic fluid drain(1 frequency), a sign of beginning of delivery
- Predict delivery by monitoring exercise and pressure before delivery begins
It is inserted
into the cervix
2 weeks before
the expected
delivery date
Discharged with
amniotic fluid
discharge, a sign
of beginning of
delivery
Predict delivery
by monitoring
exercise and
pressure before
delivery begins

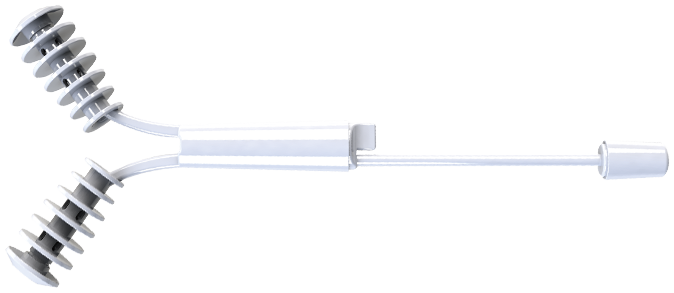

- Sensor Module / Option: Sensor Insertion Tool
- Spread Status :
   Length × Width × Wrinkle Part Length 156 mm × 114 mm × 22.18 mm
- FOLDED STATUS :
   Length × Width × Length (column) 156 mm × 51.7 mm × 23.29 mm

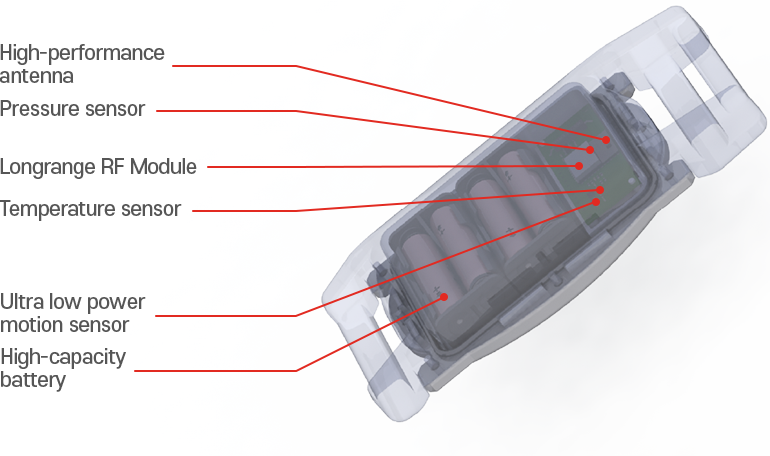

Composition
of sensor
module
Three sensors make accurate measurements,
High-performance antennas cover a wide range.
Composition of sensor module
• RF Module • Temperature sensor
• 3-axis MEMS • Battery AAA
• Pressure sensor
- Data transmission cycle: every 10 minutes
- Data transfer distance: 50M or more ※Do not use for more than 3 weeks in a row

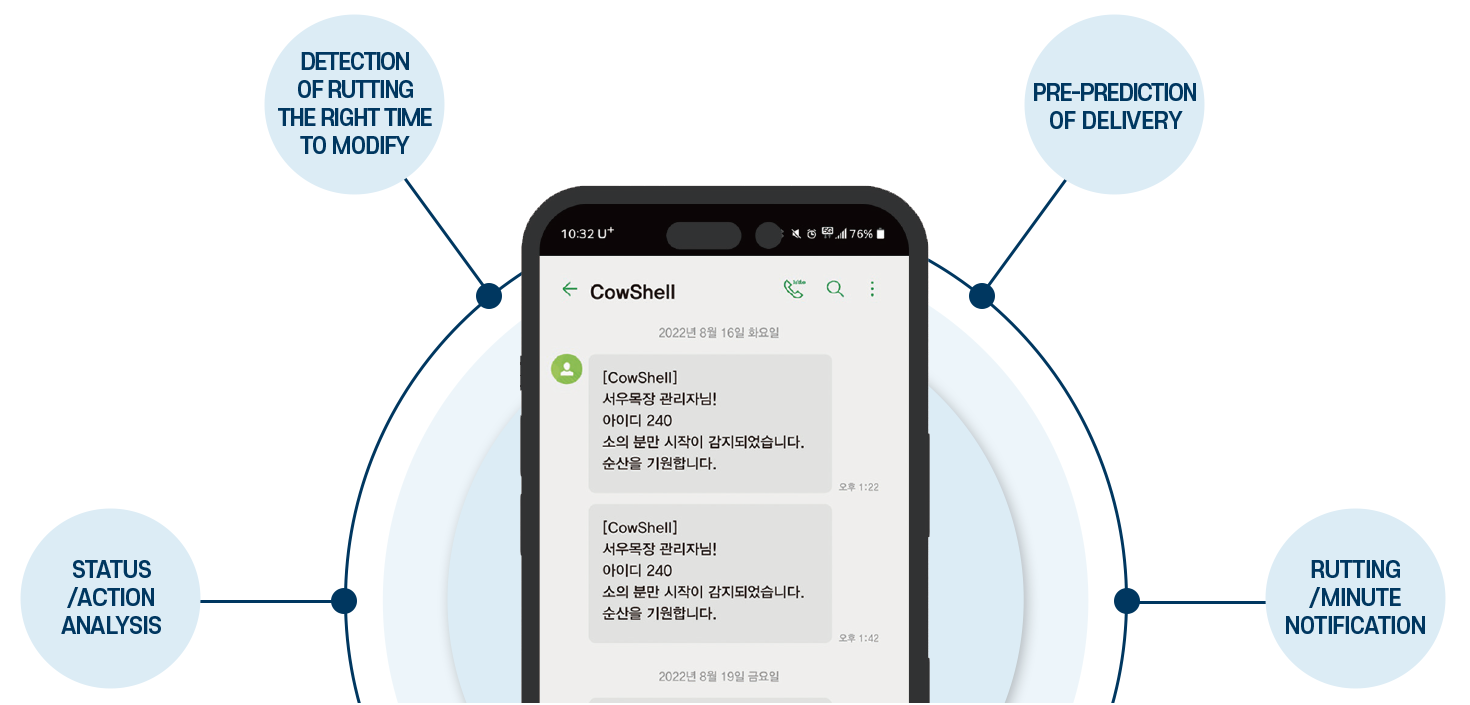

Event
notification
Analyze real-time data
to let users know when it is best.

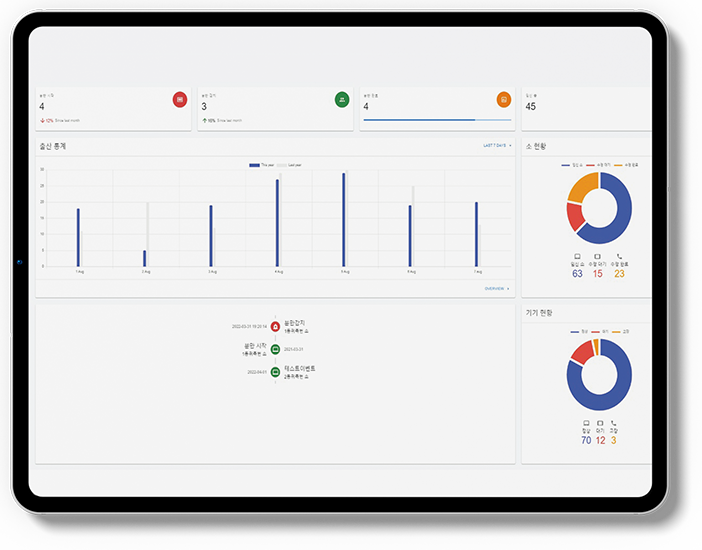

Sensor
Integrated
Monitoring
System
Monitor and analyze biological
and location-based data of breeding cattle.
• Biological Data Analysis of Breeding Rainwater
• Location-based data monitoring
• Manage individual rutting and delivery data
• Reliable cloud-based services
• Event notification function
